Features + advantages

  • Suitable for virtually all aircraft sizes – even megaliners such as the A380
  • Approved for use at airports and on public roads up to 80 km/h
  • Reliable design and weight-optimised steel structure
  • No-touch policy: vehicles comply with AHM 913 requirements
  • A standard feature of the series: innovative, electronic control and assistance systems
  • Reliable maintenance and service systems
  • Bolted auxiliary frame made from high-quality fine-grained steel
  • Compatible with all well-known truck chassis brands
  • Complies with the official superstructure guidelines for truck manufacturers
  • Built with high-quality components and well-known brand products
A ladybug on a blade of grass with drops of water

The world´s first 100 % zero-emission highloader superstructure.

Features + Benefits

  • 100 % emission-free process on the aircraft
  • ROI in only 3,5 years
  • Lifetime* savings of up to 110.000 € compared to an ordinary vehicle
  • 349 tons of CO2 savings with every vehicle for the entire lifetime*
  • Up to 11 aircraft operations with a fully charged battery

The values have been calculated for a two shift daily operation for the climatic conditions in central Europe or the US.
*Lifetime = 15 years

Vehicle request

Send us your request to receive a personalised offer for this vehicle.
Made in Germany. Since 1878.

Many manufacturers talk about quality and a long service life. We actually deliver it.

With each new vehicle generation, we raise the bar a little higher – to achieve things that our competitors have not. True DOLL® quality is all about usefulness; it's about satisfaction, being ahead of your game, taking pride in what you do. And it's about reliability and safety. Our quality sets the standard – mile after mile, on any terrain.

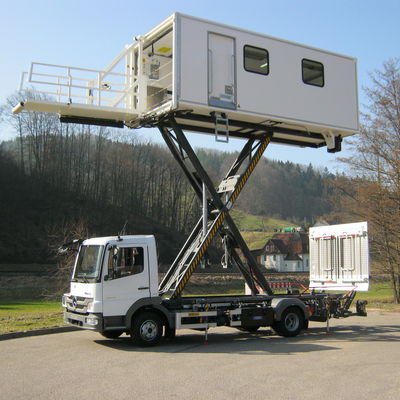

Vehicle details and equipment

Facts + components

  • Transfer heights of 108” to 326”
  • Compatible with all well-known truck chassis brands
  • High-quality superstructure with four large windows
  • Electro hydraulically extendable canopy to protect passengers and employees
  • Robust aluminum platform with extendable side walls
  • Roller shutters available in a range of sizes
  • A wide range of additional tried-and-tested equipment
  • Text and logos as required by the customer

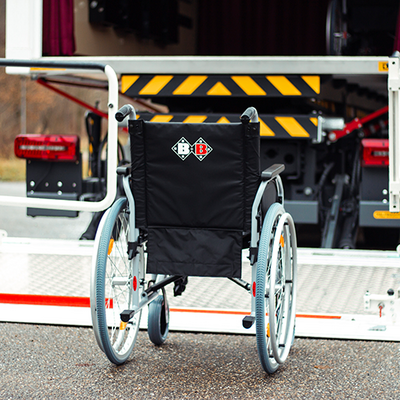

Rear lift with fall protection system

Emergency off switches – operated via the display or foot switch – provide additional safety.

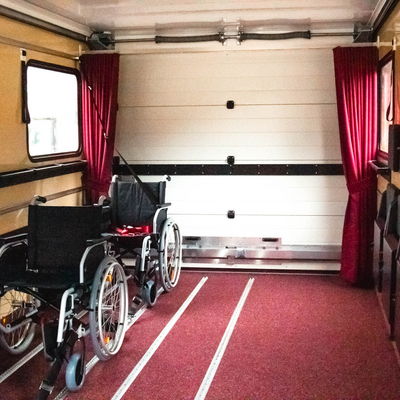

Interior medical features

For example, brackets or safety belts for wheelchairs, first aid cabinets and intercom systems.

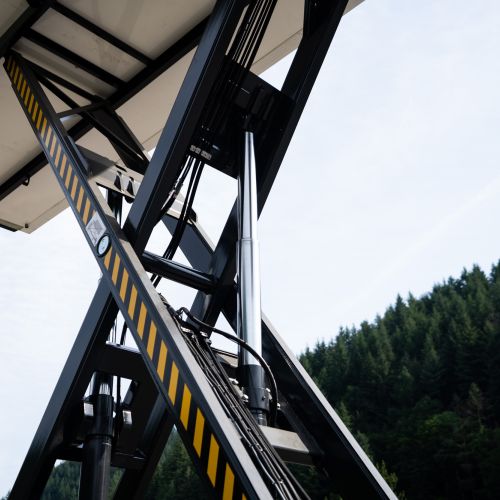

Reliable lift system

Hydraulic scissor lift with a robust, lightweight design, featuring redundant shut-off valves and cylinders for absolutely failsafe operation and maximum user safety.

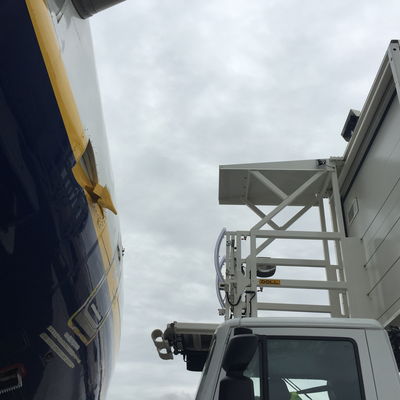

Special platform design

In addition to megaliners, our medical lift vehicles also serve docking positions for smaller aircraft with external boarding steps.

We set the standard across the market.

Uncompromising safety. Outstanding convenience.

The ground handling procedures for an aircraft need to be completed very quickly. There are lots of vehicles, machines and people working at the same time to load and unload the aircraft. The time pressure puts a lot of strain on everyone involved, increasing the risk of operating errors, damage or even accidents. DOLL®'s top priority has always been to ensure maximum safety and convenience for your operators, passengers, cargo and aircraft.

Our safety features and operating assistance systems are unparalleled – and of course they comply with all international guidelines, such as EN, IATA, ANSI and SAE.

Features + advantages

  • High-quality sensors and CAN bus system
  • No uncontrolled lowering movements: lift system with three check valves
  • The box can be raised up to the loading ramp height without supports
  • Side door is automatically locked in raised position
  • An audible signal sounds in the driver's cab and box when the supports are lowered
  • Safety shoe for monitoring the height level between the platform and the aircraft
  • Sensors around the platform to detect the aircraft fuselage
  • Platform barrier can be safely unlocked from a distance of 120 mm
  • In the event of a failure, the complete hydraulic system can be operated manually via hand pump or electric emergency pump

Intelligent platform

In order to protect your operators and the aircraft fuselage, we use a sensitive sensor measurement system that complies with all current standards and regulations.

Innovative control technology

Intuitive control panels and displays reduce operating errors and set new standards in terms of user-friendliness.

Precise vehicle positioning

It is crucial that the vehicle is positioned precisely beneath the aircraft door. The images captured by the platform camera in the driver's cab give your driver the perfect helping hand for this task.

Approaching the aircraft safely

When our vehicles are between 8 and 0.5 m away from the aircraft, they offer a safe slow-running mode. Within 0,5 meters distance to the aircraft the adjusted speed of the platform extension (snail speed) ensures a safe non touching docking to the aircraft door.

Double protection

When you're working close to an aircraft, any wrong moves can cause costly damage. That's why we rely on numerous preventative safety mechanisms. For example, the superstructure can only be raised when the support legs are extended and the doors are closed.

Everything in view: 360° camera

The images captured by the camera are transmitted in real time to a screen in the driver's cab. If required, the system can also be fitted with an integrated black box. This will provide you with key evidence in the event of any damage – and prevent any unlawful damage claims by your airlines.

Electronic assistance systems

Leading intelligent assistance on the airfield
KLM airplane at an airport gate with a catering truck beside it, showing red radar waves indicating proximity detection.

DOLL® SAS

And when it comes to approaching the aircraft, don't leave anything to chance. The intelligent DOLL® SAS system assists your operators and automatically detects any object in the danger area.
A hand operates the keypad of the DOLL OCS operating and control system

DOLL® OCS

The epitome of user-friendliness and driver support: the innovative DOLL® OCS operating and control system.
A black case lined with padding material, containing the DOLL RDS Remote Diagnostic System

DOLL® RDS

Less downtime, reduced maintenance costs and a global troubleshooting service.

Technical data

X-PRM MH

Technical data
  • Driver's cab: half size
  • Transfer height: 1,150 mm - 5,900 mm
  • Payload: 4,500 kg
Box superstructure
  • Wheelchairs
  • Lashing straps, safety belts and fixing rails for wheelchairs
  • Cabinets (first aid kit)
  • Roller shutters in various sizes, also available with electric motor
  • Window in the roller shutter
  • Motion sensor for interior lighting
  • Intercom system
  • Heating and air conditioning system
Features and accessories
  • Reverse camera
  • Additional cameras in the driver's cab
  • Work lamps and signal lights
  • Battery charger
  • Key switch 30 km/h
  • Fire extinguishers

Technical data for the US market

X-PRM MH

Technical data for US market
  • Sill height: 45″ - 232″
Box superstructure
  • Wheelchairs
  • Lashing straps, safety belts and fixing rails for wheelchairs
  • Cabinets (first aid kit)
  • Roller shutters in various sizes, also available with electric motor
  • Window in the roller shutter
  • Motion sensor for interior lighting
  • Intercom system
  • Heating and air conditioning system
Features and accessories
  • Reverse camera
  • Additional cameras in the driver's cab
  • Work lamps and signal lights
  • Battery charger
  • Key switch 18.64 mph
  • Fire extinguishers

Performance made easy

The foundations for top performance are laid in our factory. All our vehicles are built in our professional, precise and careful production process. We pay special attention to the stability of the frame and all components, to achieving a perfect finish, and to the long-term strength of our products. We only use high-quality materials – such as long-lasting fine-grained steel – in our production process.
